Miscellaneous Projects

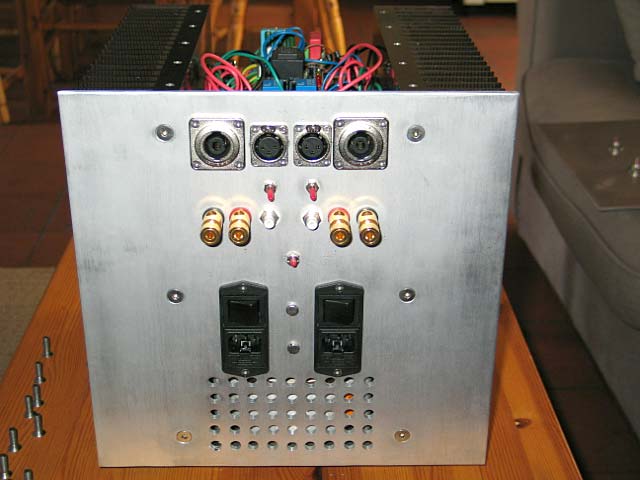

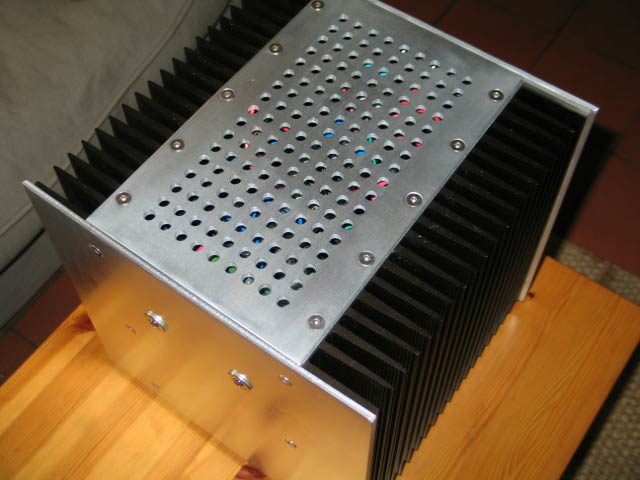

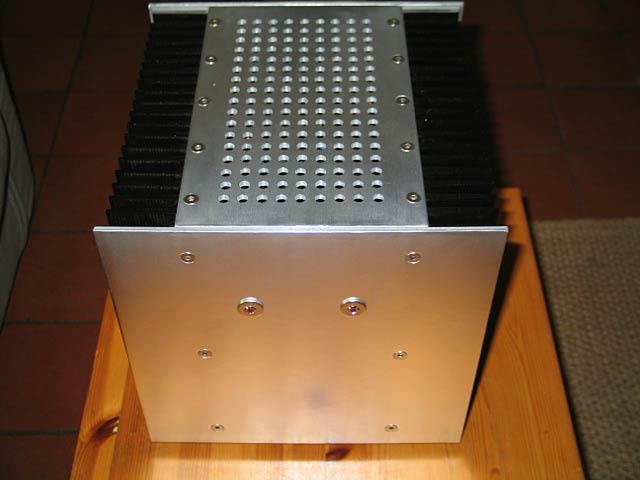

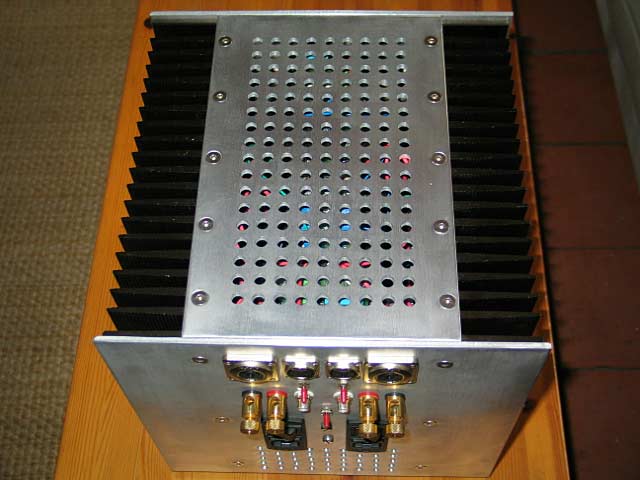

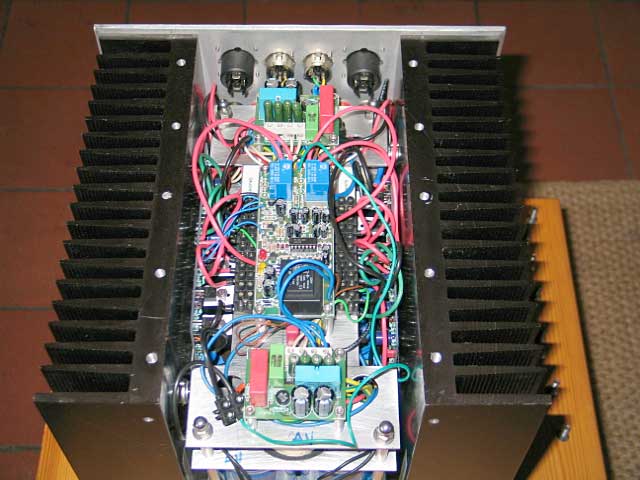

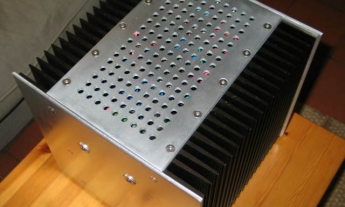

Excuse my poor english, Here somes pics from my new A5. This is my first project DIY. 12 months of hard work. I very enjoy. It drive my Pierre Etienne Léon ML 4 with no hum. My source is Revox B 226. Some data : * Transformers : 2 x 30 V - 500 VA / channel * Filter (CLC) : 4 x 68 000 µF 50 V - 2 x 2,3 mH / channel * PCB from : pcb design * Case made of aluminium sheets 5 mm * Weight : 30 kg * Length : 30 cm * Width : 30 cm * Height : 30 cm * Température : 55°C on the heatsink (25°C in the room) Again, my thanks to Nelson, who's support for the DIY community has been inspirational to many. cheers, Thierry Thierry BASSAL .(JavaScript must be enabled to view this email address)
